NDX 2

The Burr-Brown® PCM1792A digital-to-analogue converter working alongside our new streaming platform is one of the best available. We improved its performance even further by implementing our own digital filters and adding a discrete current-tovoltage converter immediately after the DAC.

The streaming section of the NDX 2 uses the latest Naim network card featuring lownoise, high-speed low-voltage differential signalling (LVDS) to route the digital audio signal. The higher speed is capable of decoding all HD audio formats at up to 32 bits/384 kHz or DSD128. Rather than the source acting as the digital timing master, our new streaming board turns things around and allows our DAC clock to control the flow of audio data. The data is integer-over-sampled in a SHARC DSP to an incredible 40-bit accuracy before it’s fed to the Burr-Brown DAC.

The NDX 2 features an integrated low-noise power supply with a custom-designed toroidal transformer and separate windings for the digital and analogue sections. However, the player can be upgraded with an external XPS DR or 555 PS DR power supply, giving you a marked increase in sonic authority and emotion.

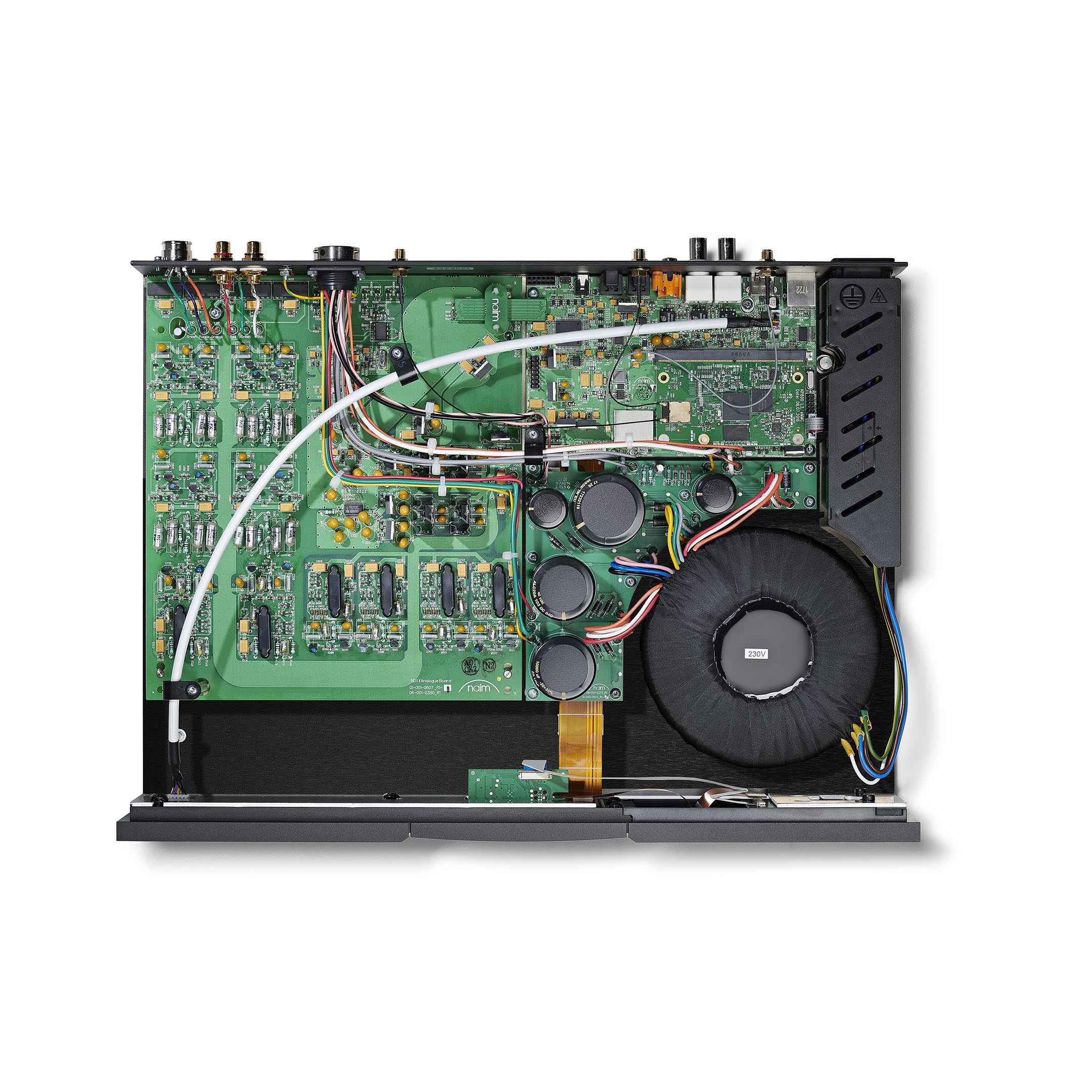

During the development of the NDX 2, our engineers examined every detail, from mechanical construction, component selection and board layout. The result is a network player worthy of the Naim badge, with a sound that’s rich, detailed and engaging.
