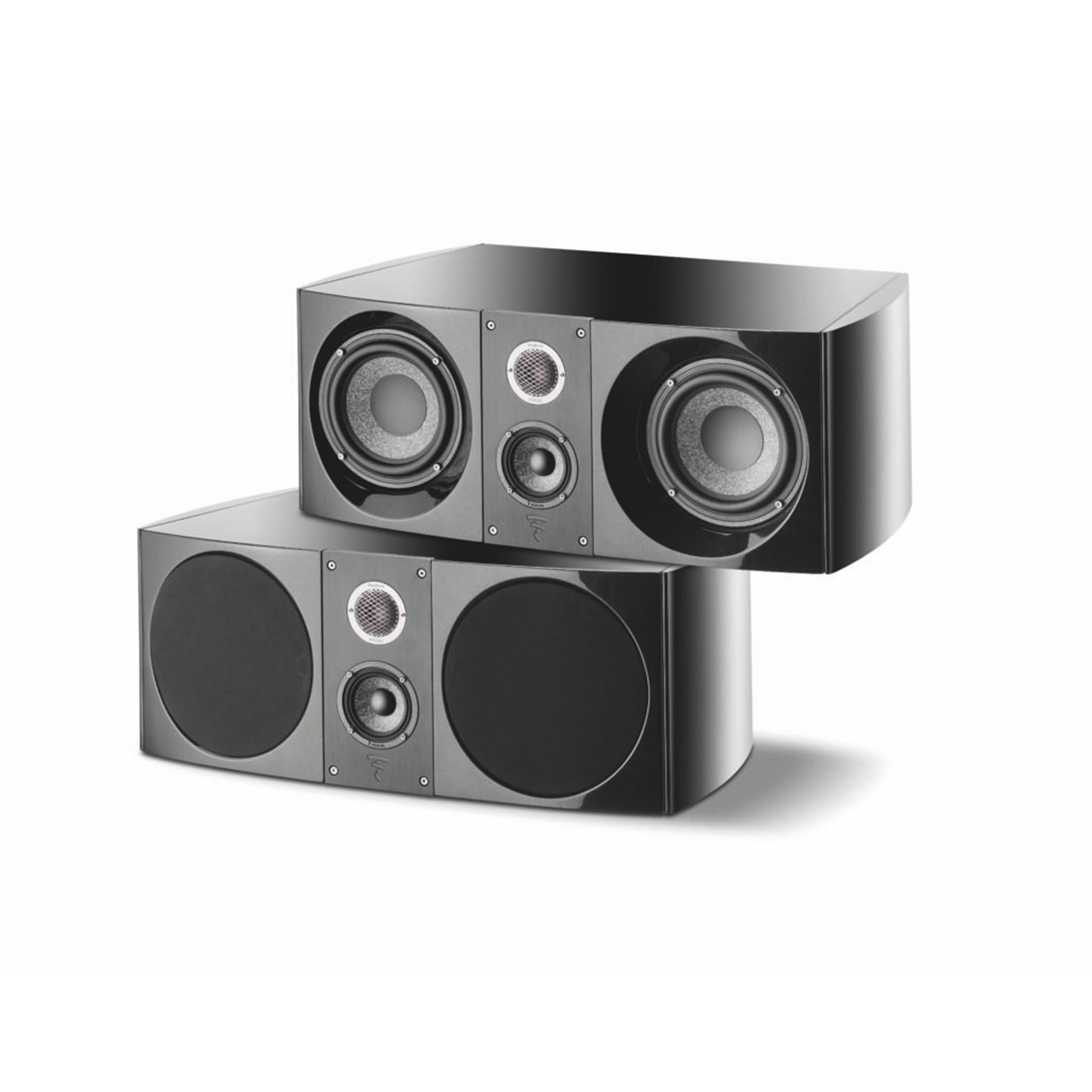

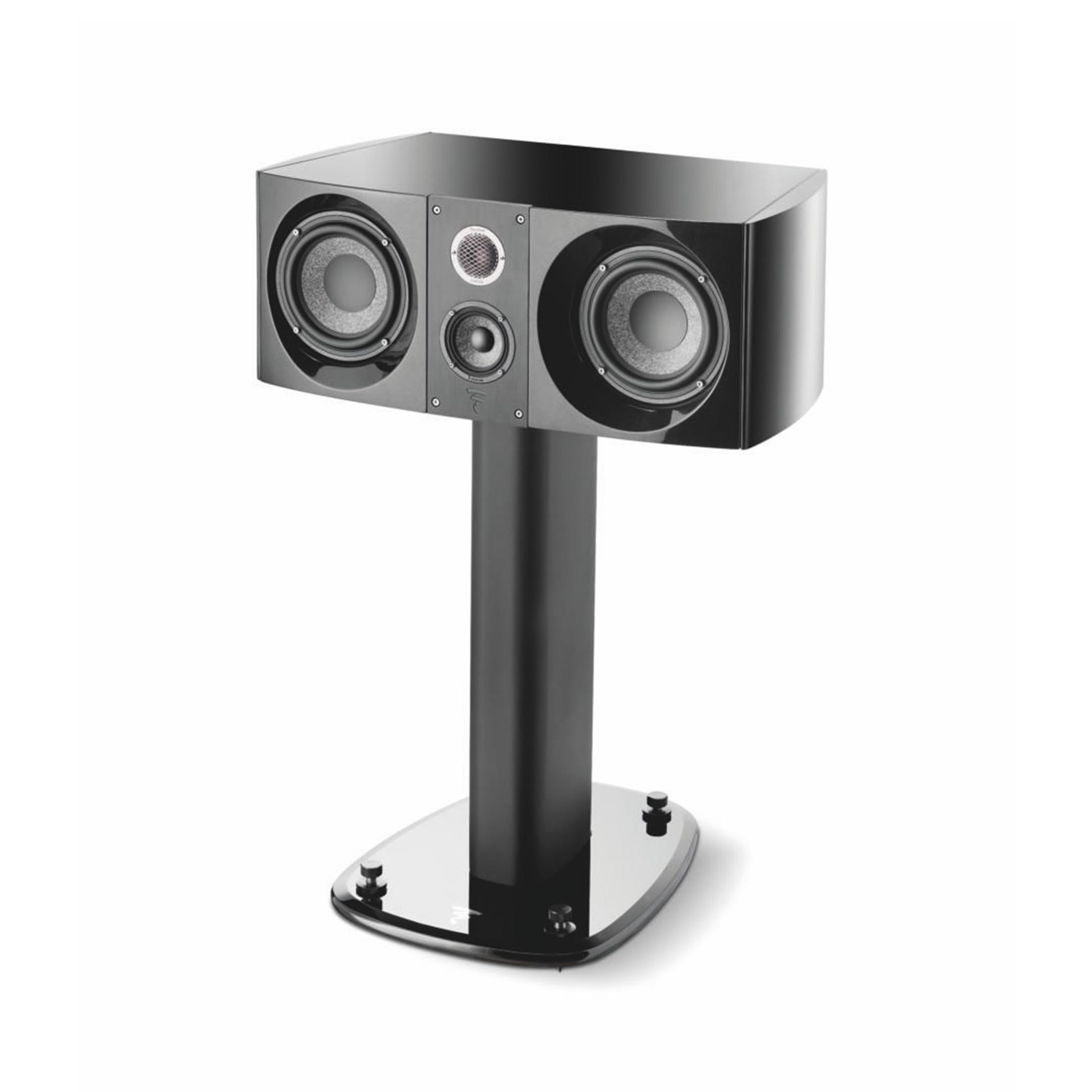

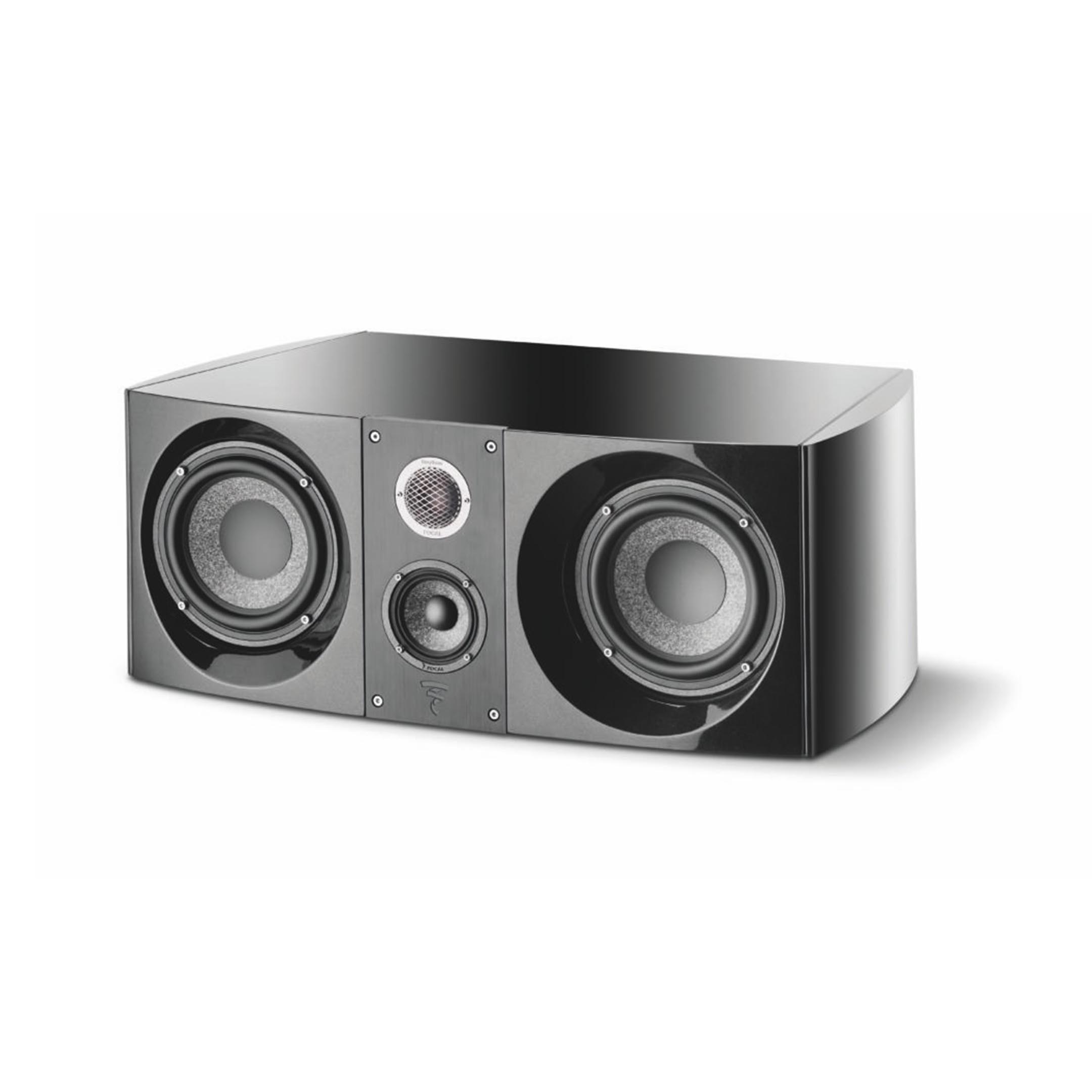

Focal Sopra Center
3-WAY SURROUND LOUDSPEAKER
Sopra Center allows you to extend the Sopra experience to your Home Cinema. Sopra Center uses all the design aspects of Sopra loudspeakers in order to optimize integration into your home. The center loudspeaker is an essential component of home cinema systems because its role goes beyond reproducing just the dialogue. The mid-range must provide precision and coherence between the visuals and the soundstage. If the center loudspeaker reproduces the majority of voices in the center of the image, its spectrum is much broader and also includes music, sound effects and other sounds.
The Sopra Center loudspeaker is the ideal complement for the other loudspeakers in the Sopra line: Sopra N°1 bookshelf loudspeakers and Sopra N°2 or Sopra N°3 floor standing loudspeakers. Each model in the line offers high performance and consistency in terms of output, rendering and scale. Each speaker driver benefits from the same technologies: ‘W’ cones and pure Beryllium inverted dome tweeters. The sound-stage therefore, is perfectly dispersed: the sound emanating from either side of the image is reproduced without variation of the timbre.
Like all products in the Sopra line, Sopra Center is available in the Black Lacquer finish.
The center loudspeaker is composed of:
- 3″ (8cm) ‘W’ cone midrange
- 2 x 61/2” (16.5cm) ‘W’ cone woofers
- 11/16” (27mm) pure Beryllium IAL tweeter.
Made in France Sopra’s cabinet was designed in our cabinet-making facility in Bourbon-Lancy (Burgundy, France) using the same manufacturing process as for Utopia The 69mm sandwich-machined front panel uses the same principle as ‘Gamma Structure’ to provide inertia and damping. Its density gives it the inertia necessary to provide a stable mechanical reference for optimal definition. The inside of the cabinet has no parallel side panels, and small Helmholtz resonators have been added to the lower section to prevent vertical standing waves. We chose glass as the material for the base of the loudspeaker to provide floor coupling, using spikes, which enabled the fastest propagation time possible, thus eliminating all halo effects in the bass.
The design agency Pineau & Le Porcher designed Sopra with one rule : No sacrifice of performance to aesthetics. The Sopra line is destined for the most passionate sound enthusiasts. Its design favours performance, whilst bringing together the qualities expected of an object which will be integrated into very elegant interiors and décors. Lacquered or bloodwood finishes are associated to noble materials to create an elegant line. Substantial efforts were made to give the front a tidy appearance, particularly around the speaker drivers, to iron out any aspects which could afflict the acoustics or the appearance. Sopra’s very structure is articulated around the intermediate section. This injected polyurethane component allows for the upper and lower cabinets to be inclined for the “Focus Time” (acoustic convergence of the channels).
The main theme of Sopra is deliberately uncluttered, though it still offers connoisseurs the opportunity to enjoy all the small details. The grille with an incremental meshing motif protects the Beryllium tweeter and gives it a strong identity. This motif is repeated for sealing the curved back panel of the middle section. The terminal board, the thumb nuts and the adjustable spikes have all been specially designed for Sopra, as have the few visible screws, all of which were manufactured by watchmaking exper
Our Beryllium tweeter features an incredibly light and extremely rigid dome, that deliver a transparent and dynamic sound. Its main limitation comes from the compression of air in the cavity behind it. But the requirement for Sopra to be compact meant that as much of the cabinet as possible had to be used for the bass. We had to explore other options for loading the tweeter, which led us to come up with the IHL system. The “IHL” system enables to load the Beryllium tweeter respecting the compactness demand of the speaker. The rear wave of the tweeter is delicately and gradually absorbed to avoid any distortion. The treble definition is pushed to the maximum
Since the beginning, we have always had a great interest in the magnetic circuit, an essential aspect of a speaker drive unit. The precision and detail of audio reproduction depends on the stability of the magnetic field. NIC technology (Neutral Inductance Circuit) permits to control the magnetic field and finally enables to master it in order to limit distortion. It decreases the effects of distortion and give the sound a very high-definition and an unprecedented dynamic.
Our teams have revealed resonances which alter definition in the suspension which connects the cone to the basket. The solutions already known for increasing the damping properties of the suspension all result in an increase of the mass which consequently alters definition. The answer came from a technology used in earthquake-resistant skyscrapers and which is also used for the suspension on racing cars. “TMD” technology consists of optimising the suspension profile which controls the resonance in order to drastically reduce distortion and increase the definition of bass and midrange.
Type | Three-way bass-reflex center speaker |
Drivers | 2 x 61/2” (16.5cm) “W” cone woofers 3″ (8cm) “W” cone midrange 11/16” (27mm) pure Beryllium “IAL” inverted dome tweeter |
Frequency response (+/- 3dB) | 55Hz – 40kHz |
Low frequency point – 6dB | 50Hz |
Sensivity (2.83V / 1m) | 91dB |
Nom. impedance | 8 Ohms |
Minimum impedance | 4.1 Ohms |
Crossover frequency | 500Hz / 2200Hz |
Recommended amplifier power | 40 – 200W |
Dimensions (HxLxP) | 91⁄4x2331⁄32x1325⁄32” (235x609x350mm) |
Net weight | 121.25lbs (19kg) (stand: 40.78lbs (18.5kg)) |
